Scaffold network generator

Posted on | In

Scaffold Network Generator

Repo

Github

Usage

1
2
3
git clone [email protected]:jach4/scaffold_network_generator.git sng
cd sng
python scaffolds_output.py --np=50 --file_input=data/datasets/input.smi --scaffolds_output=data/datasets/scaffolds.smi --file_output=data/datasets/scaffolds.bin

Read the entire scaffold message from a file

1
2
3
4
5
6
7
8
9
10
from data import *
from rdkit import Chem
from rdkit.Chem import Draw
from rdkit.Chem.Draw import IPythonConsole

dic = DicSmScaffoldLs()
with open('data/datasets/scaffolds.bin','rb') as f:
    dic.ParseFromString(f.read())

print(len(dic.smiles_scaffold))
1
402344

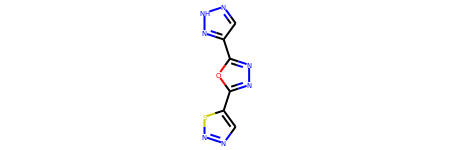

Get the 1990th scaffold

1
2
print(scaffold_smiles_idx(1990))
Chem.MolFromSmiles(scaffold_smiles_idx(1990))
1
c1n[nH]nc1-c1nnc(-c2cnns2)o1
png
png
1
dic.smiles_scaffold[scaffold_smiles_idx(1990)]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
dic_mol_atoms {
  idx_mol: 111921
  ls_atom {
    idx_atom: 1
    idx_atom: 2
    idx_atom: 3
    idx_atom: 10
    idx_atom: 11
    idx_atom: 12
    idx_atom: 13
    idx_atom: 14
    idx_atom: 15
    idx_atom: 16
    idx_atom: 17
    idx_atom: 18
    idx_atom: 19
    idx_atom: 20
    idx_atom: 22
  }
  ls_nh {
    idx_atom: 3
  }
  ls_np {
  }
}

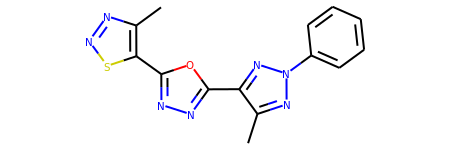

The 111,921th molecule containing the 6th scaffold

1
Chem.MolFromSmiles(smiles_from_line(111921))
png
png

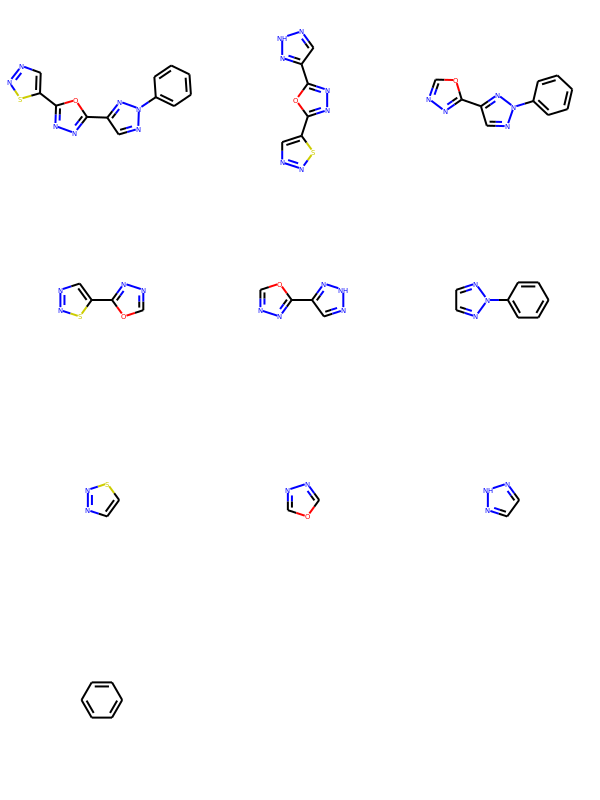

Get the scaffold network of The 111,921th molecule

1
scaffold_list = get_mol_graph(smiles_from_line(111921)).ls_mol_from_sng_u()
1
Draw.MolsToGridImage(scaffold_list)
png
png
